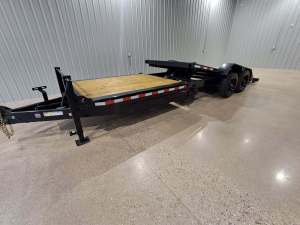

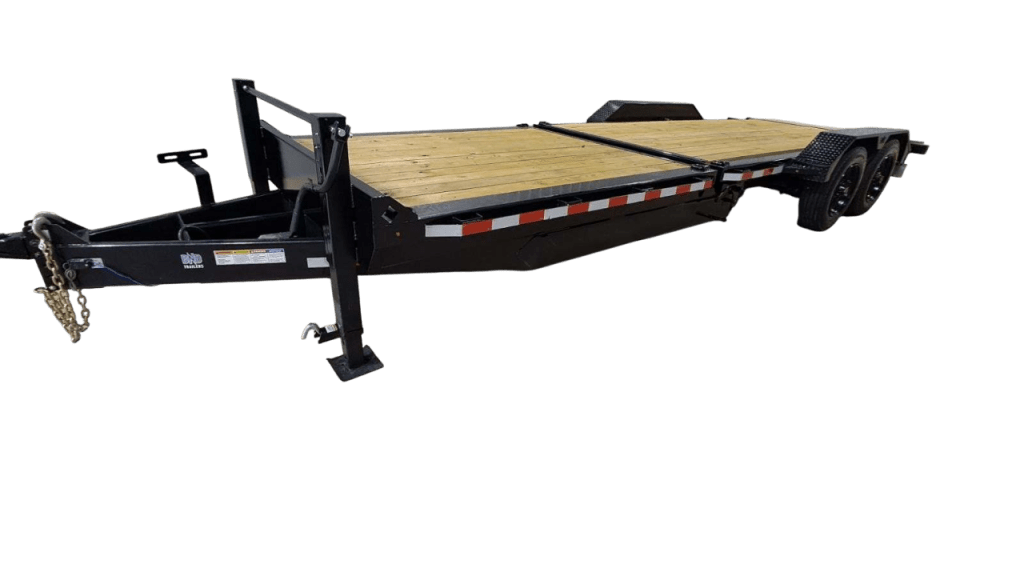

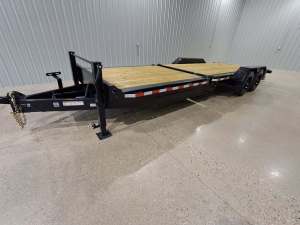

20K TILT TRAILER
Built to the MAX
BND Trailers left nothing behind when it comes to this 20K Tilt Trailer! Built with heavy duty strength, easy lading accessibility, and dual jacks for added stability. Designed with dual jacks for enhanced stability and a smooth tilt system for easy access, this trailer is built to handle your toughest jobs with confidence and efficiency.
Available Sizes:
- 7′ x 24′
- Custom
Product Specs
Bed Width:
7′
Bed Length:
24′
GVWR:
20,000 lbs
Load Capacity:
14,300 lbs

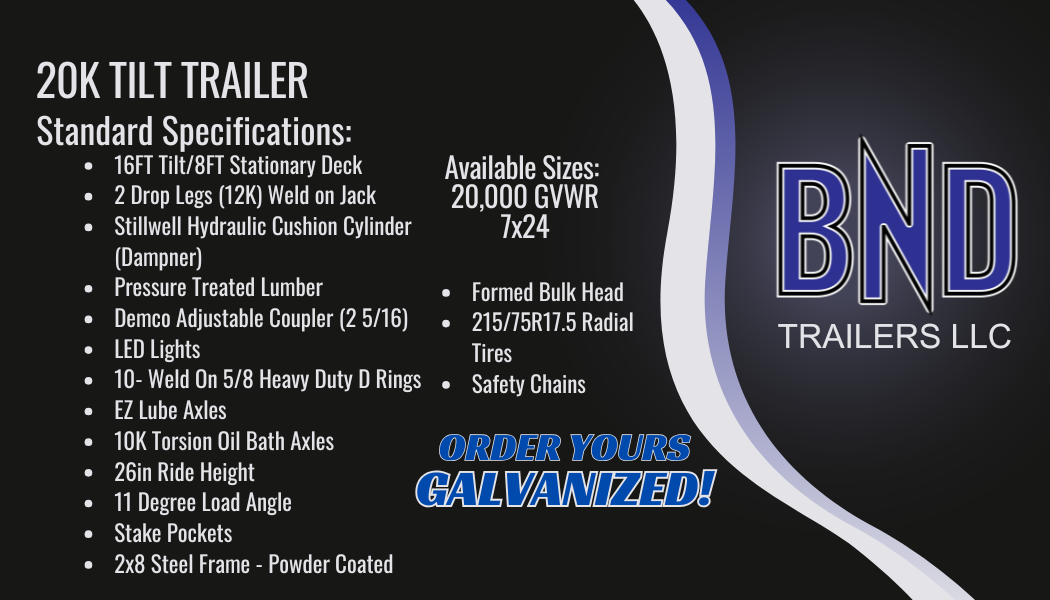

KEY SPECIFICATIONS
- Size: 7′ x 24′

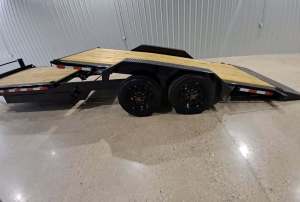

- 16′ Tilt, 8′ Stationary Deck

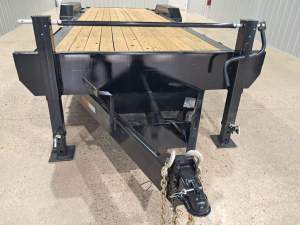

- 2 Drop Legs (12k), Weld on Jack
- Still Well Hydraulic Cushion Cylinder
- 10K Torsion Oil Bath Axles
- 2 5/16″ Demco Adjustable Coupler
- EZ Lube Axles
- 11 Degree Load Angle
- Tires 215/75/17.5 Radial
- 14,300 lbs Load Capacity
- 20,000 GVWR

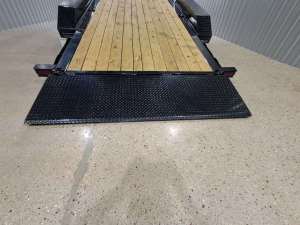

- 24″ Steel Tread Transition Plate on Tilt
- 26″ Ride Height
- Pressure Treated Deck
- LED Lights
- Formed Bulk Head
- 5/8″ Weld on D Rings
- 2″x8″ Steel Frame
- Powder Coated or Galvanized
- Stake Pockets and Safety Chains
Don’t see what you’re looking for? Let us CUSTOM BUILD a trailer for you!
